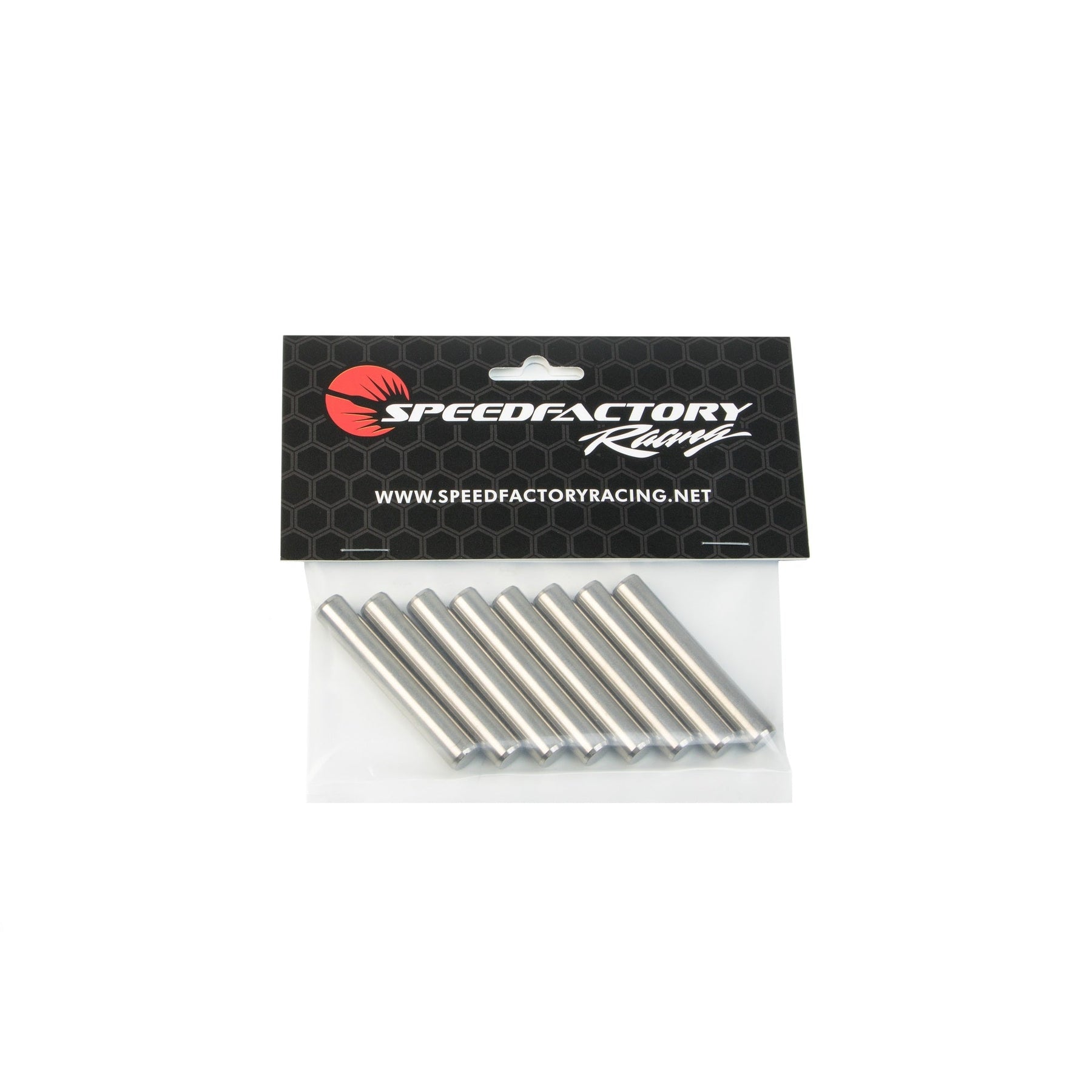

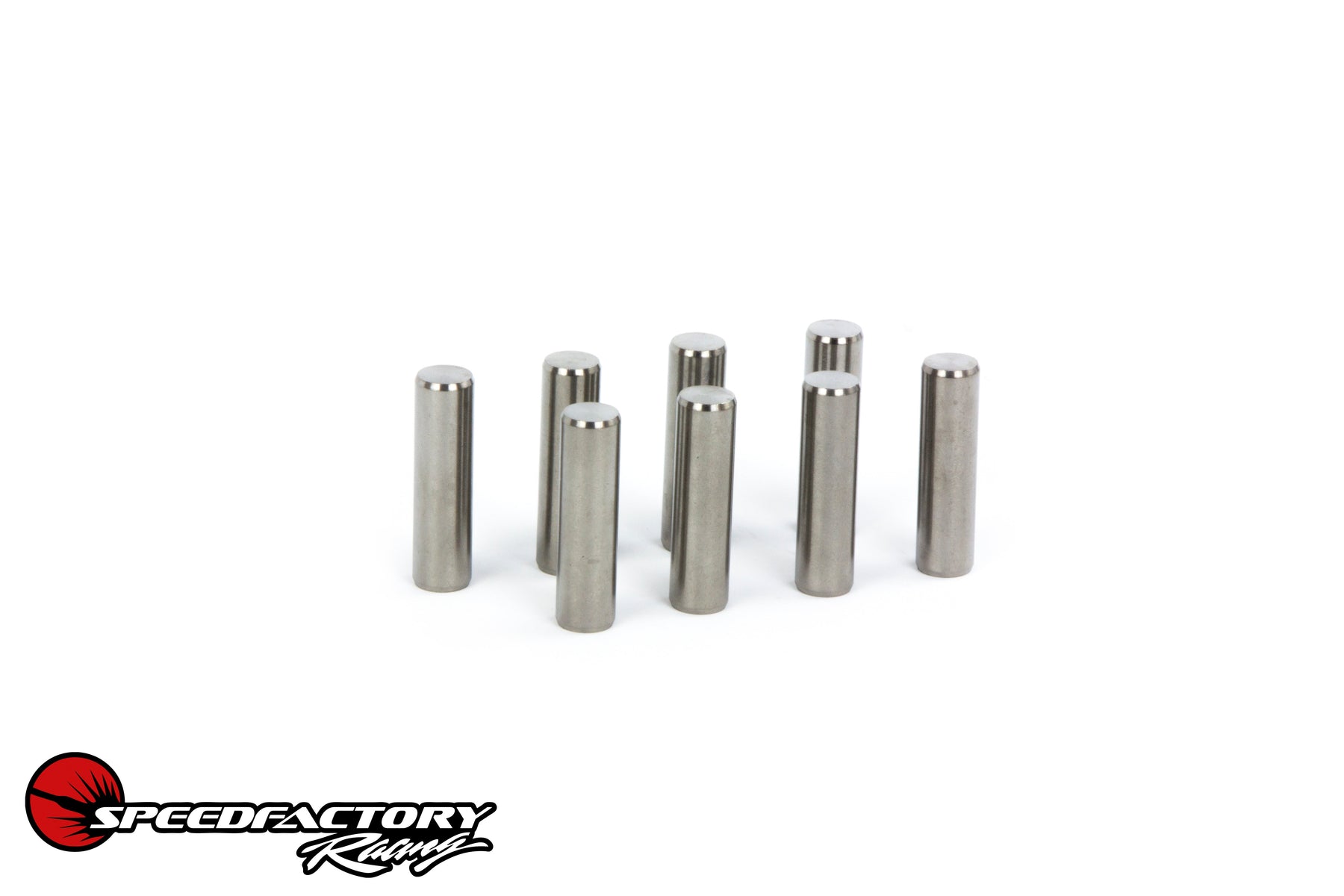

SpeedFactory VTEC Eliminator Pin Kit Installation Notes
Please take care to follow these installation notes – using these guidelines, we have successfully used these locking pin kits for years in our own race cars without issue.
Camshaft Lobe & Rocker Pad Condition:
Make sure these items are in good condition - smooth with no signs of scuffing, scoring, or pitting. If any of these conditions exist you will experience accelerated wear!
Engine Oil:
Running aftermarket camshafts and valve springs with high valve seat pressure and oil that does not have high levels of high-pressure additives such as ZDDP (we recommend an oil with 1200+ppm such as Torco SR-1r, SR-5r, or TR-1r) can wipe out the camshaft lobes and rocker pads. This is not specific to locking VTEC, it happens with normal VTEC system operation as well. We have had good results from 85-100lbs seat pressure on our race cars. Going much higher than that will cause accelerated wear.
Valve Lash:
B & H series - Lash measured at the VTEC lobe needs to be set to 0.006” Intake and 0.008” Exhaust minimum. You can also measure at the valve tip as below.
K,F,D series - Lash measured at the valve tip needs to be set to 0.010” Intake and 0.012” Exhaust minimum.
This is critical! Running tighter lash than this WILL result in premature camshaft lobe and rocker pad wear!
Lost Motion Assemblies (LMAs) & VTEC Solenoid:
LMAs can either be left in place or removed; we have run it both ways successfully. That being said, leaving them in place allows them to act as a “helper” spring, but keeps the rocker pads up against the camshaft’s base circle. Removing the LMAs ensures that the oil film does not get wiped from the base circle which helps alleviate any possible wear issues, so we recommend removing them.
If the VTEC solenoid is installed but not activated it does nothing; functioning the same as an aftermarket VTEC block off plate. You can use either.
Note: When running a locked VTEC, single, or dual lobe setup we recommend welding shut the now un-used cam lobe oiling holes in the spray bars and enlarging the ones that you are using to .078” with a 5/64” drill bit. This will provide increased lubrication and cooling to the cam lobes and rocker pads that are being used, resulting in significantly reduced wear and increased longevity of these high wear components.
